Visionary Solutions: Audiovisual Distribution with Advanced AV over IP Technologies
Visionary Solutions was founded in 1995, with an initial focus on electronic design for video cameras, and has since grown into one of the leading manufacturers of AV-over-IP equipment. Their product lines, including the 4 Series and the new 5 Series, are helping AV project managers complete projects faster than with previous methods. The products offer the highest level of quality, scalability, and performance you'll find in the marketplace. Visionary's solutions are featured around the globe, with value, flexibility, and quality making them the first choice for markets in enterprise, education, healthcare, government, professional A/V, cable, broadband, and broadcast applications.
Visionary Solutions AV over IP endpoints are designed to integrate into any environment seamlessly. The characteristics that set them apart are ultra-low latency, ease of setup, and immediate support of applications up to 4K60 UHD and 4K60 4:4:4. The encoders and decoders' capability of utilizing converged IP networks eliminates the issues associated with traditional switch matrix distribution systems and their limitations for AV and IT professional applications. The products can also be used on existing enterprise networks or private networks dedicated solely to video, allowing video to be routed separately from data and voice traffic.
The 5 Series: Advanced Encoders and Decoders
The Visionary 5 Series encoders and decoders feature an advanced set of mutual capabilities optimized for AV-over-IP use cases. Every system features an AI-enhanced adaptive bit-rate codec that intelligently analyzes source content and adjusts the compression on the fly to maintain visually lossless quality while minimizing bandwidth, allowing for bitrates between 50 and 800 Mbps. Security is enterprise-grade, featuring AES stream encryption, HTTPS secure API, 802.1x authentication, and SSH to restrict data and device access over the network.
System integrators gain a beneficial, strong feature set that simplifies deployment and control. The built-in mass serialization tools allow for auto-discovery/configuration, configuration management via CSV files, and system-wide updates through the device's built-in web UI. The control and integration capabilities include compatibility with Vision Lite software, support for third-party systems, and access to an API for added customizability. Other advanced features include the independent routing of video and audio, supporting Dante/AES67, USB, IR, and RS-232; fast switching with no tearing or black screens; automatic video scaling; built-in video wall capabilities supporting up to 16x16 layouts; and a motion JPEG substream for smooth video monitoring. Compliance with HDMI 2.0 & HDCP 2.2/2.3, LLDP endpoint discovery, and quality of service make the 5 Series a complete, scalable solution AV integrators need for the modern AV environment.
5 Series Encoders
Visionary Solutions offers a variety of 5 Series encoders, each tailored for specific deployment scenarios:

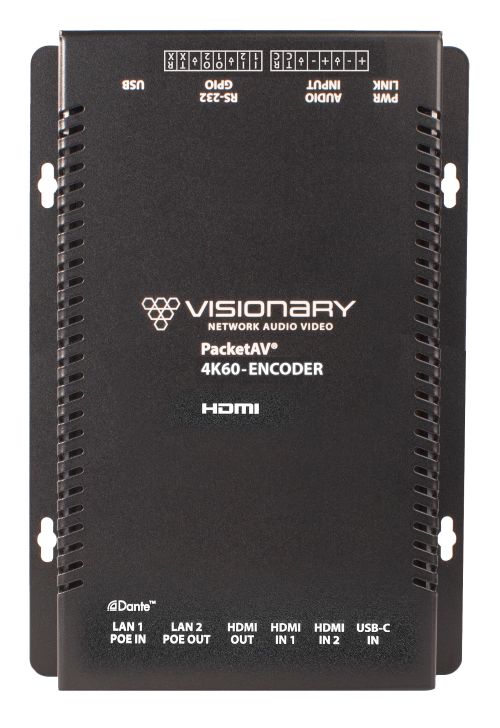

- DuetE-5 Encoder: A surface mount encoder featuring Gigabit Ethernet for 4K60 4:4:4 UHD Video, AES67/Dante, and control. It includes an expansion Ethernet port, and inputs for HDMI, USB-C, and Stereo Analog Audio. The USB-C input enables real-time data transfer for USB devices, such as webcams and microphones, simplifying video conferencing solutions and offering soft-codec integration.

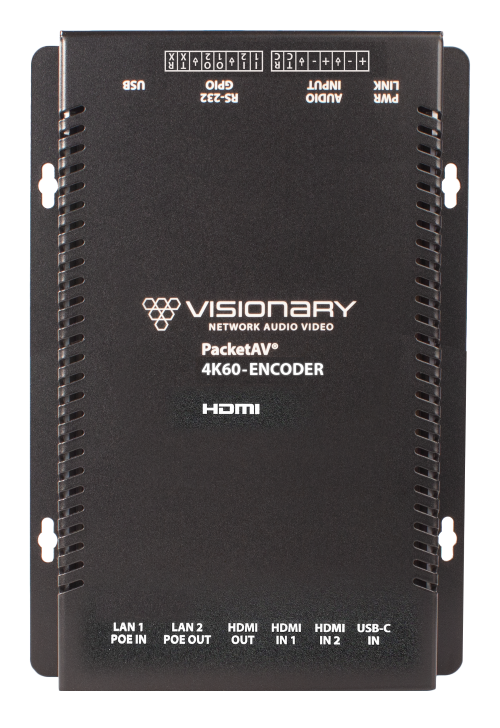

- E5200 Encoder: Also a surface mount unit, providing Gigabit Ethernet for 4K60 4:4:4 UHD Video and control, with an expansion Ethernet port and inputs for HDMI, USB-C, and Stereo Analog Audio. Notably, it is upgradeable to AES67/Dante.

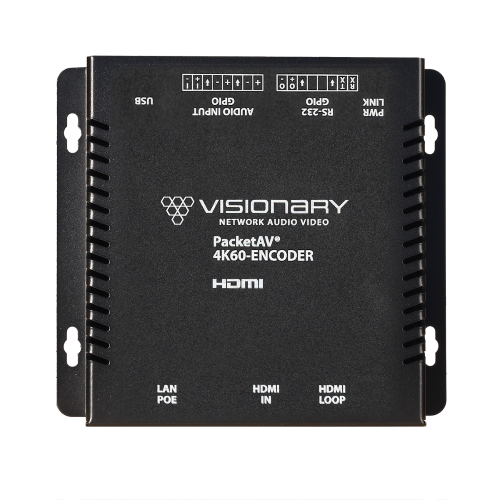

- E5100 Encoder: Another surface mount encoder option with Gigabit Ethernet for 4K60 4:4:4 Video and control. It offers HDMI and Stereo Analog Audio inputs, and supports Native AES67 Audio.

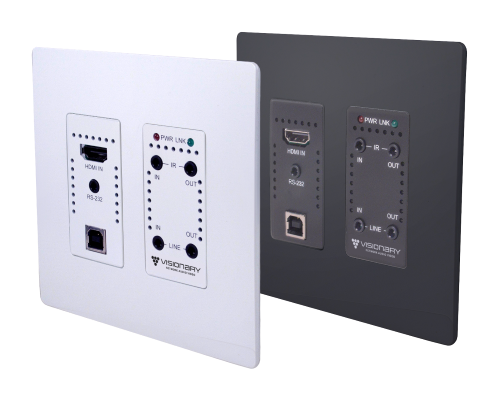

- DuetE5-WP Encoder: A Duet Wallplate Encoder designed for discreet installation in conference rooms, classrooms, or other professional environments. It provides Gigabit Ethernet for 4K60 4:4:4 Video, AES67/Dante, and control, with inputs for HDMI, Analog Audio, USB, and RS232. It supports PoE for simplified installation, utilizing a single Ethernet cable, and fits into standard 2-gang US boxes.
- DuetE5-WP-H Encoder: A variation of the Duet Wallplate Encoder, offering Gigabit Ethernet for 4K60 4:4:4 Video, AES67/Dante, and control, with a single HDMI input.
- DuetE5-WP-BT Encoder: This Duet Wallplate Encoder stands out with its built-in bi-directional Bluetooth wireless audio connectivity, enabling streaming audio from Bluetooth-enabled devices and bridging Bluetooth audio to Dante. It supports both A2DP for media streaming and HFP for bi-directional smartphone bridging. Like other wallplate models, it connects via a single category cable using PoE and fits into standard 2-gang US boxes.
- E5-WP Encoder: A Wallplate Encoder with Gigabit Ethernet for 4K60 4:4:4 Video and control, accepting HDMI, Analog Audio, USB, and RS232 inputs.
- E5-WP-H Encoder: Another Wallplate Encoder option with Gigabit Ethernet for 4K60 4:4:4 Video and control, featuring an HDMI input.

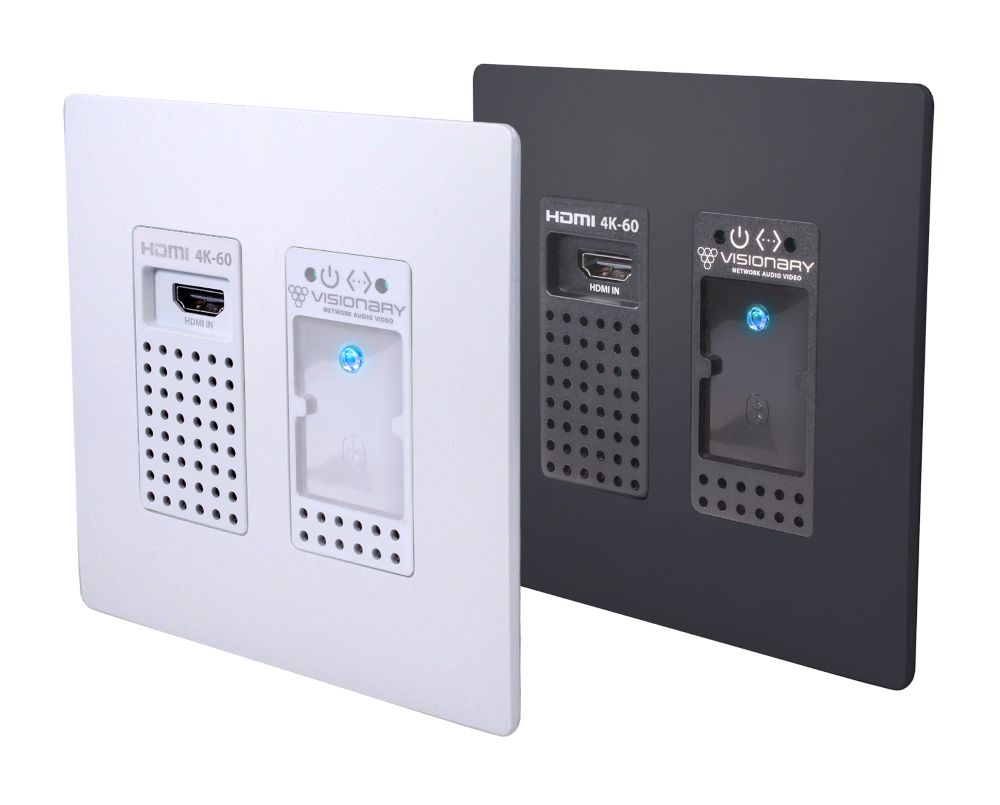

- E5-WP-BT Encoder: A Wallplate Encoder with Gigabit Ethernet for 4K60 4:4:4 Video and control, and inputs for HDMI and Bluetooth Audio.
5 Series Decoders
Visionary Solutions offers corresponding 5 Series decoders to complement their encoder lineup:

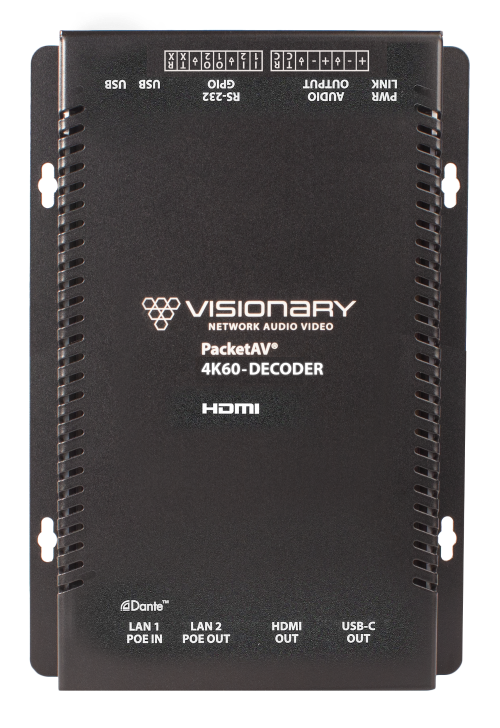

- DuetD-5 Decoder: A Duet Surface Mount Decoder that uses Gigabit Ethernet for 4K60 4:4:4 Video, AES67/Dante, and control. It includes an expansion Ethernet port and outputs for HDMI, USB-C, and Stereo Analog Audio. The USB-C output facilitates soft-codec integration via a driverless USB 2.0 connection to a PC, enabling web conferencing applications, capturing, recording, and streaming meetings directly to a PC, and bridging Dante/AES67 audio into the soft-codec.

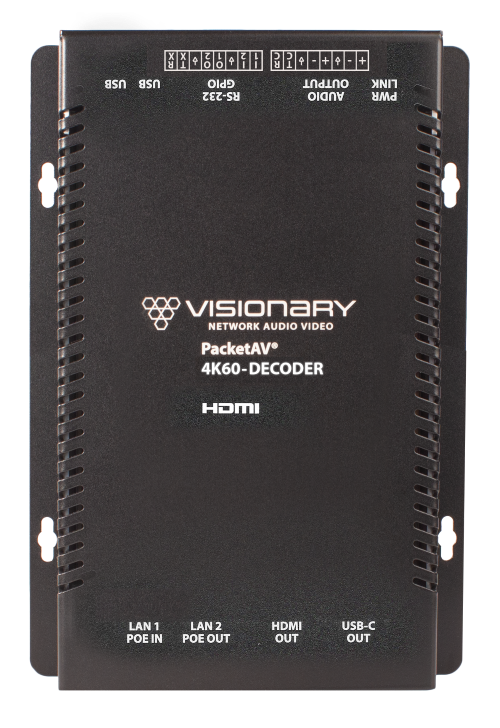

- D5200 Decoder: A Surface Mount Decoder supporting Gigabit Ethernet for 4K60 4:4:4 Video and control, with an expansion Ethernet port and outputs for HDMI, USB-C, and Stereo Analog Audio. It is upgradeable to AES67/Dante.

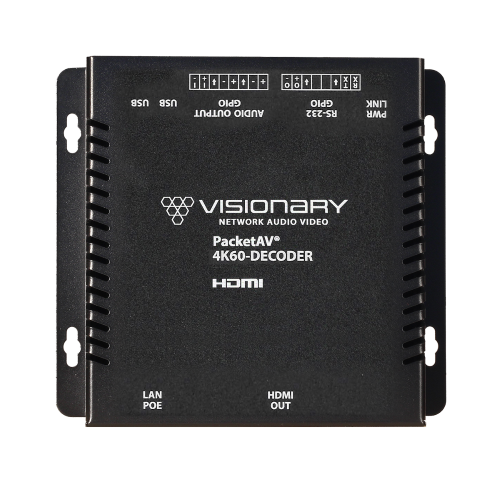

- D5100 Decoder: A Surface Mount Decoder with Gigabit Ethernet for 4K60 4:4:4 Video and control, offering HDMI and Stereo Analog Audio outputs, and supporting Native AES67 Audio.
MV5 IP Multiviewer

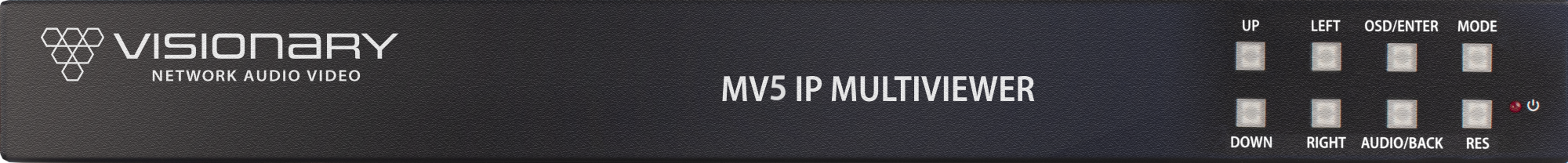

The MV5 IP Multiviewer is a 1 RU Rackmount solution designed for scaling and multi-windowing of AV over IP streams. It supports various views, including Quad, Full, Pip, and Custom layouts. With four Gigabit Ethernet inputs and both HDMI and Gigabit Ethernet outputs, it offers flexible monitoring and display options for complex AV-over-IP deployments.
Rackmount Systems
For expansive installations, Visionary Solutions provides rackmount kits:
- 3 Unit Rackmount Kit (AVIP-RACKMOUNT-3): Holds up to 3 units in 1 RU and fits standard 19-inch racks.
- 14 Unit Rackmount Kit (AVIP-RACKMOUNT-14): Accommodates up to 14 units in 4 RU and also fits standard 19-inch racks. Both kits are designed for front or back mounting and high-density stacking of multiple endpoints. Blank plates, Part #: AVIP-BLNK-1, are also available.
Conclusion
Visionary Solutions offers simple but effective solutions in the AV over IP market, with a comprehensive suite of products that combine high performance, robust security, and simplified deployment. Their commitment to addressing real-world problems in network audio-video is evident in their versatile 5 Series encoders, decoders, and supporting infrastructure, such as the MV5 IP Multiviewer and rackmount systems. Notable projects, such as Resorts World Las Vegas, which utilizes over 2,000 Visionary AV over IP endpoints, and NASA's International Space Station, demonstrate the reliability and efficiency of Visionary's solutions in demanding environments. For more information visit the Mainline Reps Website, or contact your Mainline Sales Representative directly. Frequent product update are also shared on the Mainline Reps Linkedin page.
